Details

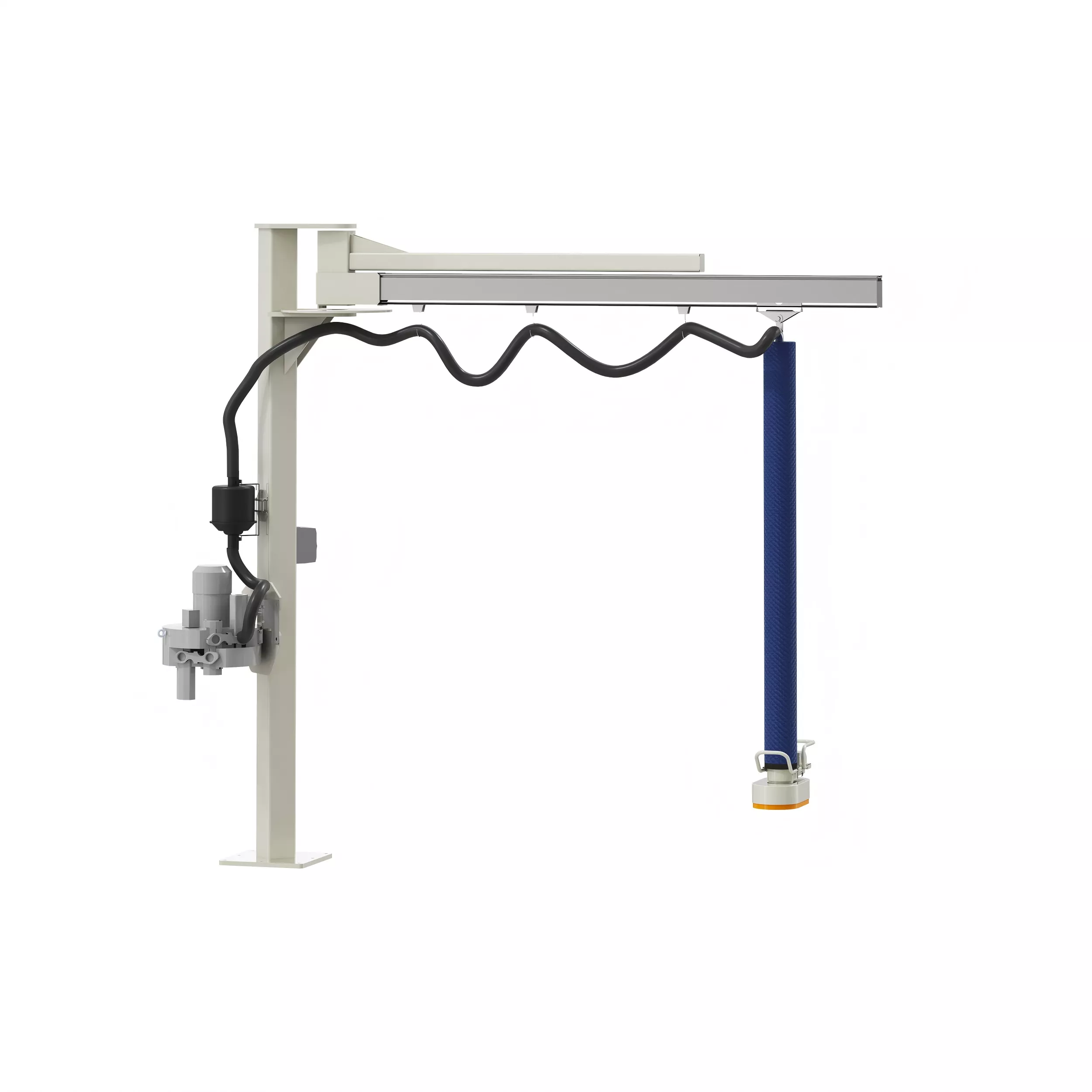

A vacuum lifter is an automated handling device that uses negative pressure generated by a vacuum pump or blower to create suction through suction pads. It securely lifts and transports glass, metal sheets, stone, wood, cartons, and other non-porous or semi-porous materials. The operator uses a control handle to regulate vacuum levels for lifting, lowering, and releasing loads. A vacuum reservoir provides emergency holding power if the power supply fails. The equipment enables fast, damage-free, and ergonomic manual or crane-assisted handling.

Core Advantages

Provides safe, damage-free lifting of glass, metal, stone, and wood surfaces

Reduces manual strain and improves handling efficiency compared to manual lifting

Includes vacuum reservoir and one-way safety valve to prevent load drops during power failure

Offers fast suction release and adjustable lowering speed

Consumes less energy with intermittent start function

Product Features

This vacuum lifter features suction pads made of rubber, silicone, or polyurethane to match surface texture. A vacuum pump or blower generates suction, while a vacuum pressure sensor monitors system vacuum level. A control handle allows one-handed operation for lifting and lowering. An optional mechanical arm or rail enables extended reach and maneuverability.

Product Applications

This vacuum lifter is suitable for handling flat or slightly curved non-porous materials such as glass sheets, metal plates, stone slabs, wooden boards, cardboard boxes, barrels, and pipes. It is widely used in glass processing, metal fabrication, stone cutting, woodworking, automotive, appliance, packaging, and construction industries.

Precautions

Inspect suction pads for wear or damage before each use. Do not exceed rated load capacity. Keep load balanced and clear of people underneath. Maintain vacuum level above safety threshold. Release load onto stable support only. Store equipment in a clean, dry area.

Picture of Factory

Why Choose Us

1. Engineering depth Layouts are checked against your P&ID and hazard study to align interfaces, venting, and access platforms with site standards. 2. Manufacturing traceability Material certificates and weld maps can be bundled for FAT documentation, supporting audit-ready pharmaceutical projects. 3. Lifecycle support Spare parts kits, on-site commissioning, and remote guidance shorten startup time and keep feeding performance stable.

FAQ

Q: What happens if the power fails while lifting a heavy plate?

A: The built-in vacuum reservoir and one-way safety valve maintain suction for up to twenty minutes or more, allowing time to safely lower the load or move it to a secure position.

Q: How do I choose the right suction pad material for my application?

A: For rough surfaces, use silicone or polyurethane pads. For smooth surfaces like glass, use natural rubber or nitrile rubber pads. Material temperature and working environment should also be considered.

Q: How often should suction pads be replaced?

A: Replace suction pads when visible cracks, wear, or loss of suction efficiency appears. Under normal use, they may last several months to a year depending on material abrasiveness and handling frequency.
